Iodine in PDB 9etb: CDK2-Cyclin A in Complex with Fraglite 2

Enzymatic activity of CDK2-Cyclin A in Complex with Fraglite 2

All present enzymatic activity of CDK2-Cyclin A in Complex with Fraglite 2:
2.7.11.22;

Protein crystallography data

The structure of CDK2-Cyclin A in Complex with Fraglite 2, PDB code: 9etb was solved by I.Hope, M.P.Martin, M.J.Waring, M.E.M.Noble, J.A.Endicott, N.J.Tatum, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 99.38 / 2.76
Space group P 21 21 21
Cell size a, b, c (Å), α, β, γ (°) 74.151, 133.667, 147.94, 90, 90, 90
R / Rfree (%) 21.2 / 22.8

Iodine Binding Sites:

Pages:

>>> Page 1 <<< Page 2, Binding sites: 11 - 16;

Binding sites:

The binding sites of Iodine atom in the CDK2-Cyclin A in Complex with Fraglite 2 (pdb code 9etb). This binding sites where shown within 5.0 Angstroms radius around Iodine atom.
In total 16 binding sites of Iodine where determined in the CDK2-Cyclin A in Complex with Fraglite 2, PDB code: 9etb:
Jump to Iodine binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10;

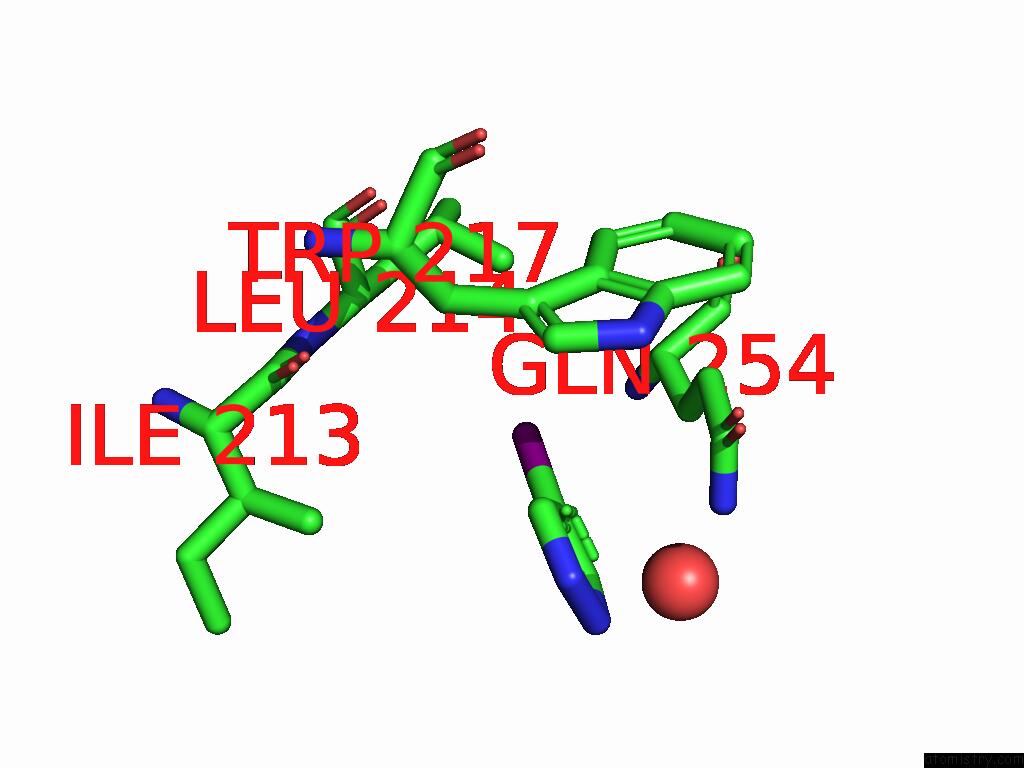

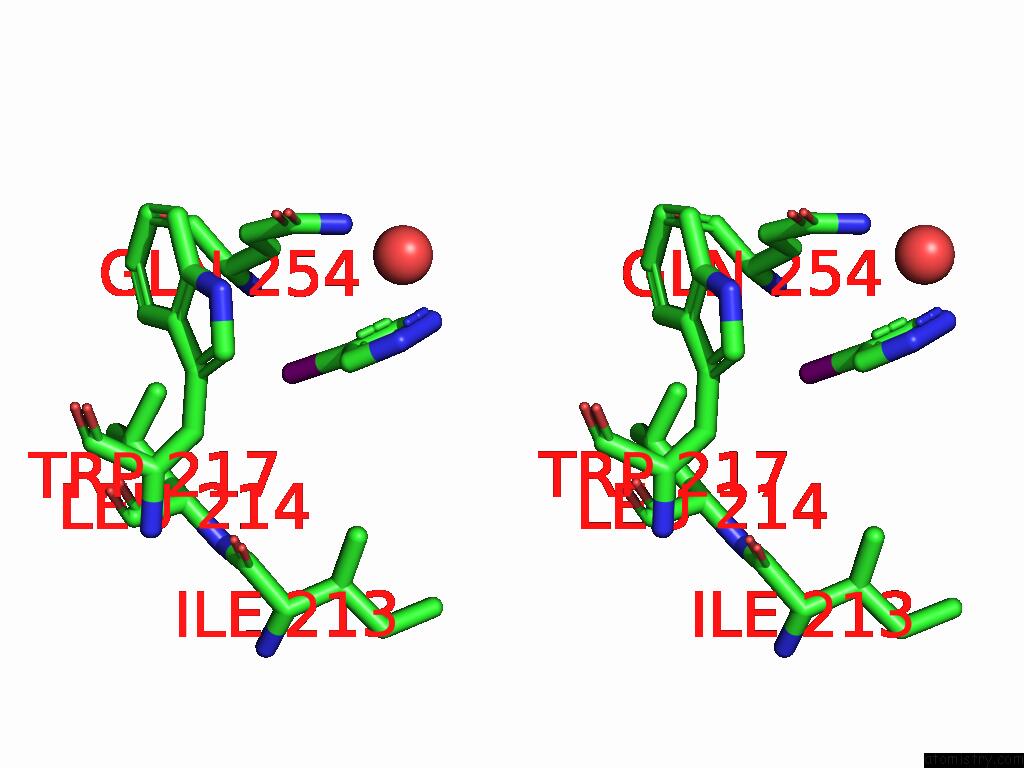

Iodine binding site 1 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 1 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 1 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
D:I501

b:73.1
occ:1.00
I4 D:PYZ501 0.0 73.1 1.0
C4 D:PYZ501 2.1 67.8 1.0
C3 D:PYZ501 3.0 67.5 1.0
C5 D:PYZ501 3.1 69.9 1.0
CD D:GLN254 3.7 38.8 1.0
CG D:GLN254 3.9 35.5 1.0
CD1 D:LEU214 4.0 24.8 1.0
NE2 D:GLN254 4.0 40.7 1.0
OE1 D:GLN254 4.1 42.1 1.0
CB D:GLN254 4.1 35.3 1.0
N2 D:PYZ501 4.1 81.0 1.0
CB D:TRP217 4.1 36.4 1.0
CE3 D:TRP217 4.1 30.1 1.0
CD2 D:TRP217 4.1 32.1 1.0
CG D:TRP217 4.2 35.2 1.0
N1 D:PYZ501 4.2 86.6 1.0
CA D:LEU214 4.3 29.3 1.0
CG2 D:ILE213 4.4 32.8 1.0
O D:ILE213 4.6 31.4 1.0
CA D:GLN254 4.7 33.8 1.0
N D:LEU214 4.7 29.9 1.0
CB D:LEU214 4.9 26.9 1.0
C D:ILE213 4.9 31.3 1.0
CZ3 D:TRP217 4.9 29.6 1.0
CD1 D:TRP217 4.9 36.0 1.0
CE2 D:TRP217 4.9 33.6 1.0
O D:HOH624 5.0 33.5 1.0

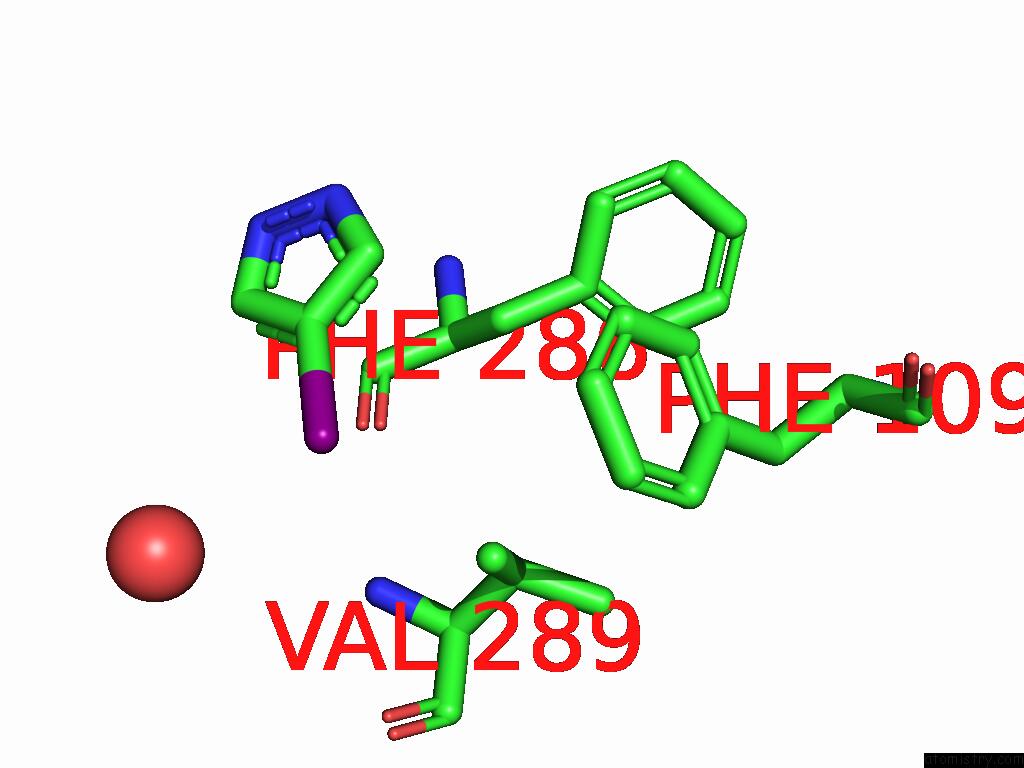

Iodine binding site 2 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 2 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 2 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:I601

b:68.0
occ:1.00
I4 A:PYZ601 0.0 68.0 1.0
C4 A:PYZ601 2.1 56.5 1.0
C3 A:PYZ601 3.1 55.9 1.0
C5 A:PYZ601 3.1 60.6 1.0
O A:HOH709 3.8 41.3 1.0
CG1 A:VAL289 4.1 35.1 1.0
O A:PHE286 4.2 35.8 1.0
CZ A:PHE109 4.2 29.7 1.0
N2 A:PYZ601 4.3 56.1 1.0
N1 A:PYZ601 4.3 59.1 1.0
CE2 A:PHE109 4.6 29.9 1.0
CE1 A:PHE109 4.9 28.1 1.0

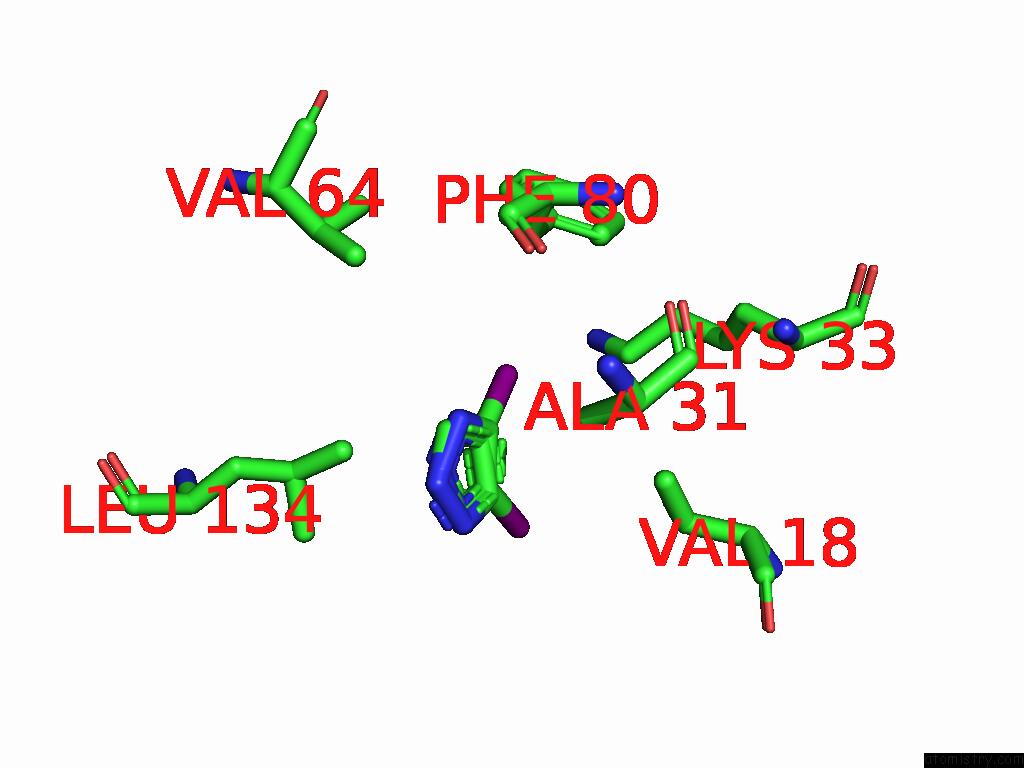

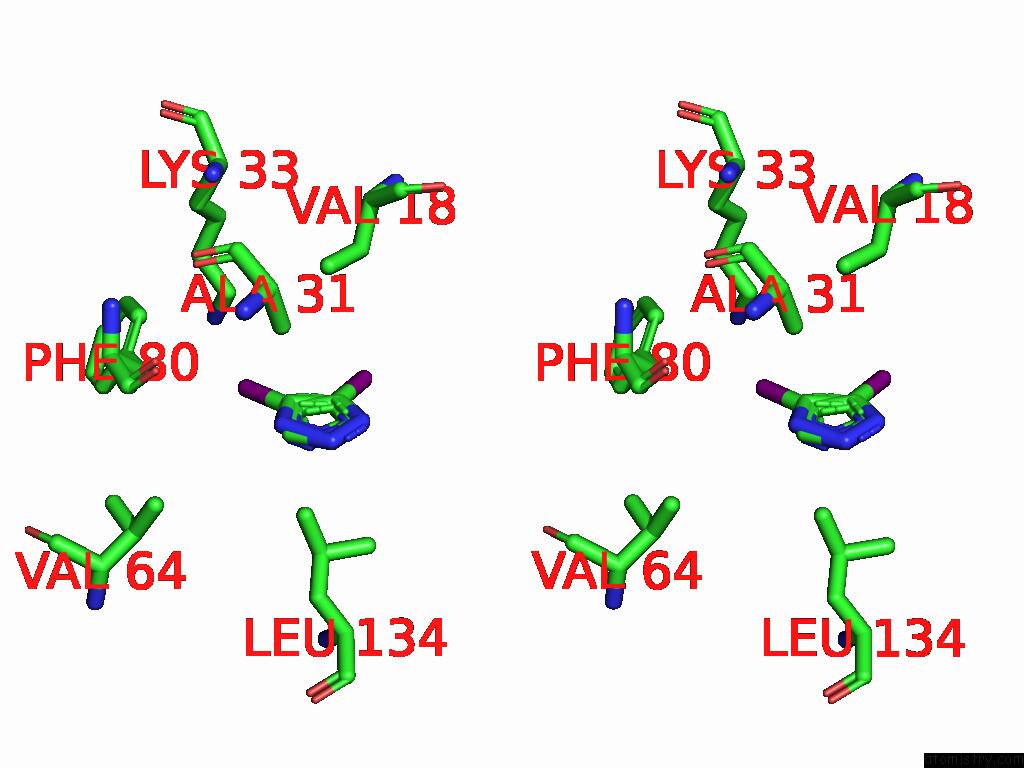

Iodine binding site 3 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 3 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 3 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:I602

b:34.5
occ:0.50
I4 A:PYZ602 0.0 34.5 0.5
C3 A:PYZ602 1.8 35.0 0.5
C4 A:PYZ602 2.1 35.5 0.5
N2 A:PYZ602 2.8 34.5 0.5
C4 A:PYZ602 2.9 35.4 0.5
C3 A:PYZ602 3.1 36.6 0.5
C5 A:PYZ602 3.1 34.7 0.5
I4 A:PYZ602 3.7 35.7 0.5
N1 A:PYZ602 4.0 34.7 0.5
C5 A:PYZ602 4.0 35.7 0.5
CG A:PHE80 4.0 28.4 1.0
CD1 A:PHE80 4.1 29.7 1.0
CB A:PHE80 4.2 27.9 1.0
N2 A:PYZ602 4.2 36.5 0.5
N1 A:PYZ602 4.3 35.5 0.5
CD1 A:LEU134 4.3 31.1 1.0
CE A:LYS33 4.3 64.8 1.0
CD2 A:PHE80 4.4 27.8 1.0
CB A:ALA31 4.5 29.1 1.0
CE1 A:PHE80 4.5 30.5 1.0
CG1 A:VAL18 4.6 39.0 1.0
CG2 A:VAL64 4.7 27.8 1.0
CE2 A:PHE80 4.8 26.9 1.0
CZ A:PHE80 4.9 28.0 1.0
NZ A:LYS33 4.9 61.8 1.0

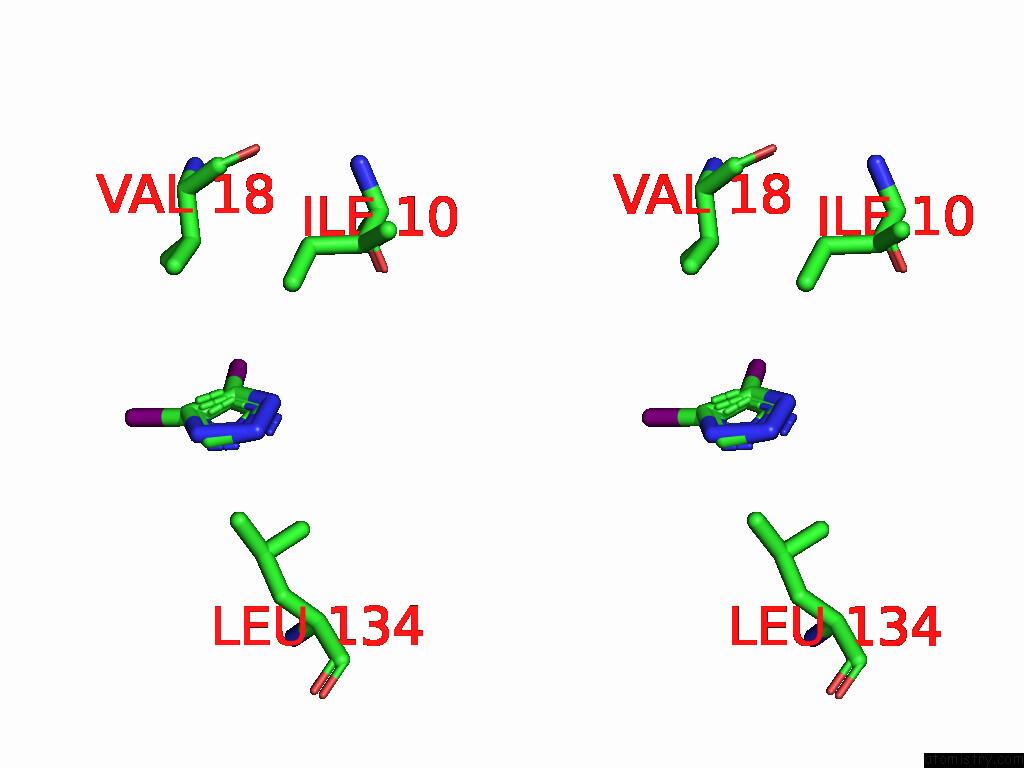

Iodine binding site 4 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 4 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 4 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:I602

b:35.7
occ:0.50
I4 A:PYZ602 0.0 35.7 0.5
C4 A:PYZ602 2.1 35.4 0.5
C3 A:PYZ602 2.1 36.6 0.5
C4 A:PYZ602 3.0 35.5 0.5
C3 A:PYZ602 3.1 35.0 0.5
C5 A:PYZ602 3.1 35.7 0.5
N2 A:PYZ602 3.2 36.5 0.5
I4 A:PYZ602 3.7 34.5 0.5
CG2 A:VAL18 3.9 41.3 1.0
CG1 A:VAL18 3.9 39.0 1.0
CB A:VAL18 4.0 39.5 1.0
N2 A:PYZ602 4.2 34.5 0.5
C5 A:PYZ602 4.2 34.7 0.5
N1 A:PYZ602 4.2 34.7 0.5
N1 A:PYZ602 4.3 35.5 0.5
CD1 A:LEU134 4.7 31.1 1.0
CD1 A:ILE10 4.7 53.6 1.0
CG1 A:ILE10 4.9 54.6 1.0

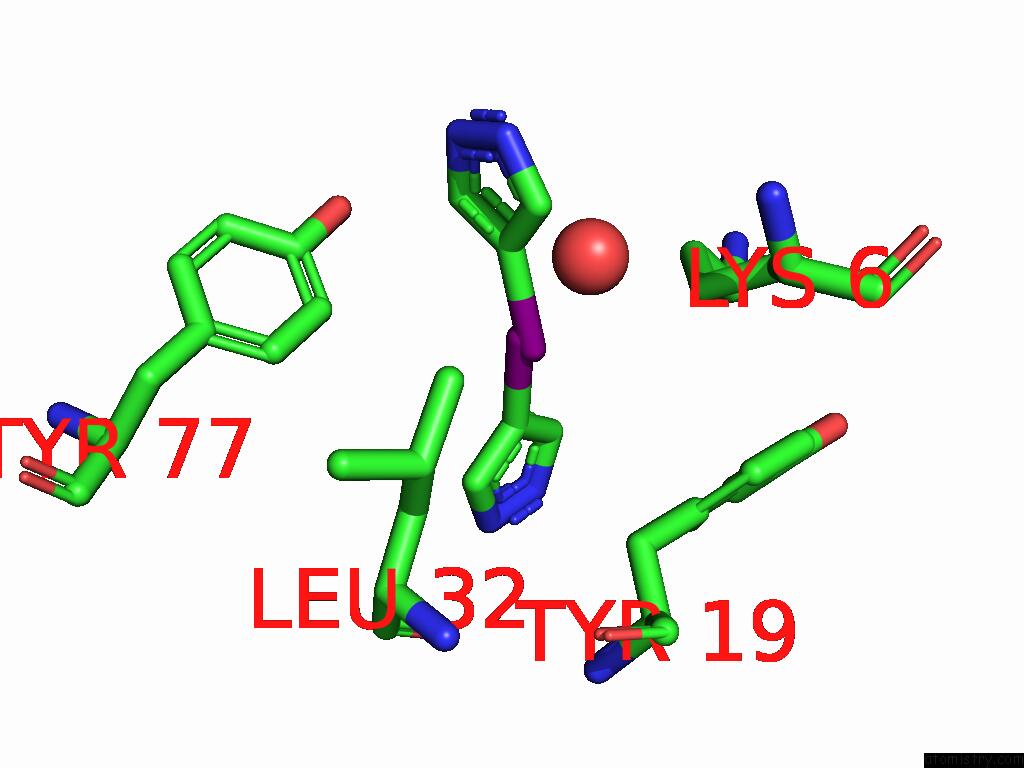

Iodine binding site 5 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 5 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 5 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:I604

b:72.1
occ:0.50
I4 A:PYZ604 0.0 72.1 0.5
I4 A:PYZ604 0.3 99.1 0.5
C4 A:PYZ604 2.0 74.0 0.5
C4 A:PYZ604 2.1 55.2 0.5
C3 A:PYZ604 3.0 66.2 0.5
C5 A:PYZ604 3.0 73.3 0.5
C3 A:PYZ604 3.1 51.6 0.5
C5 A:PYZ604 3.1 53.5 0.5
CD A:LYS6 3.5 64.6 1.0
CG A:LYS6 3.5 59.3 1.0
O A:HOH744 3.9 34.3 1.0
CD1 A:LEU32 4.0 39.8 1.0
N2 A:PYZ604 4.1 66.1 0.5
N1 A:PYZ604 4.1 70.3 0.5
CB A:TYR19 4.2 53.5 1.0
N2 A:PYZ604 4.2 51.5 0.5
N1 A:PYZ604 4.2 53.0 0.5
CE A:LYS6 4.2 64.7 1.0
CE1 A:TYR77 4.3 47.5 1.0
CG A:TYR19 4.4 63.1 1.0
CB A:LEU32 4.4 38.4 1.0
CD1 A:TYR19 4.7 73.5 1.0
CD2 A:TYR19 4.8 67.8 1.0
CG A:LEU32 4.8 38.3 1.0
CD1 A:TYR77 4.9 44.8 1.0

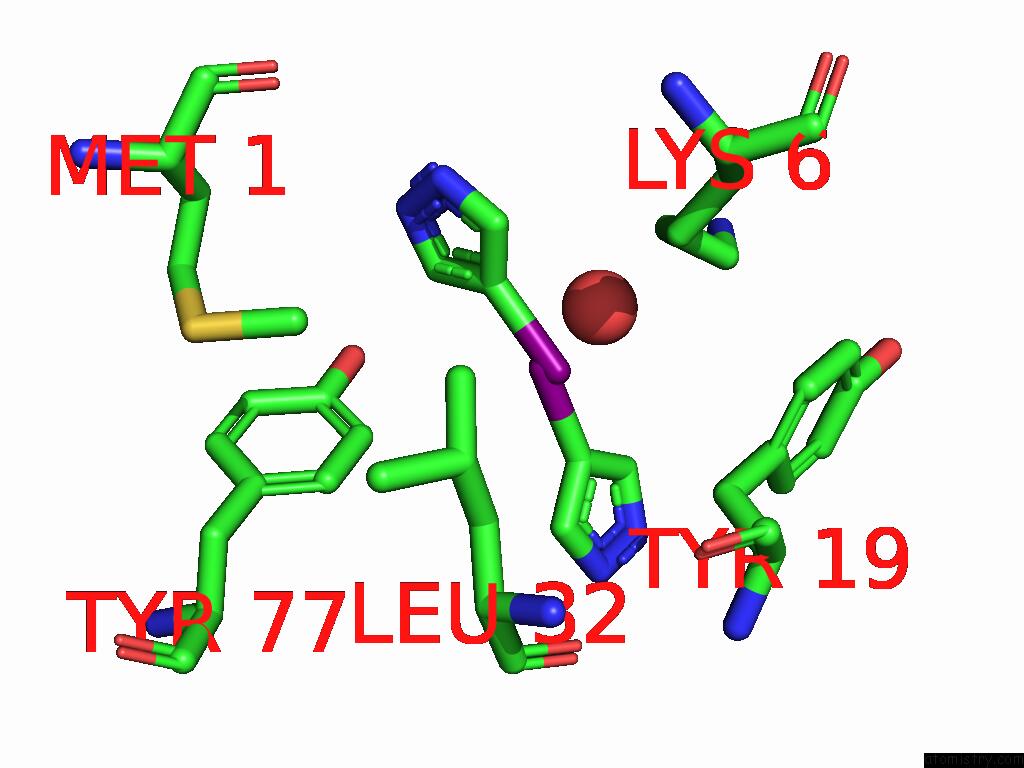

Iodine binding site 6 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 6 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 6 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:I604

b:99.1
occ:0.50
I4 A:PYZ604 0.0 99.1 0.5
I4 A:PYZ604 0.3 72.1 0.5
C4 A:PYZ604 1.9 55.2 0.5
C4 A:PYZ604 2.1 74.0 0.5
C5 A:PYZ604 2.9 53.5 0.5
C3 A:PYZ604 3.0 51.6 0.5
C3 A:PYZ604 3.1 66.2 0.5
C5 A:PYZ604 3.1 73.3 0.5
CD A:LYS6 3.6 64.6 1.0
CG A:LYS6 3.7 59.3 1.0
O A:HOH744 3.8 34.3 1.0
CD1 A:LEU32 3.9 39.8 1.0
N1 A:PYZ604 4.0 53.0 0.5
N2 A:PYZ604 4.0 51.5 0.5
CE1 A:TYR77 4.1 47.5 1.0
N2 A:PYZ604 4.2 66.1 0.5
N1 A:PYZ604 4.2 70.3 0.5
CE A:LYS6 4.4 64.7 1.0
CB A:LEU32 4.4 38.4 1.0
CB A:TYR19 4.5 53.5 1.0
CG A:TYR19 4.6 63.1 1.0
CD1 A:TYR77 4.7 44.8 1.0
CG A:LEU32 4.8 38.3 1.0
CZ A:TYR77 5.0 50.8 1.0
CE A:MET1 5.0 51.6 1.0

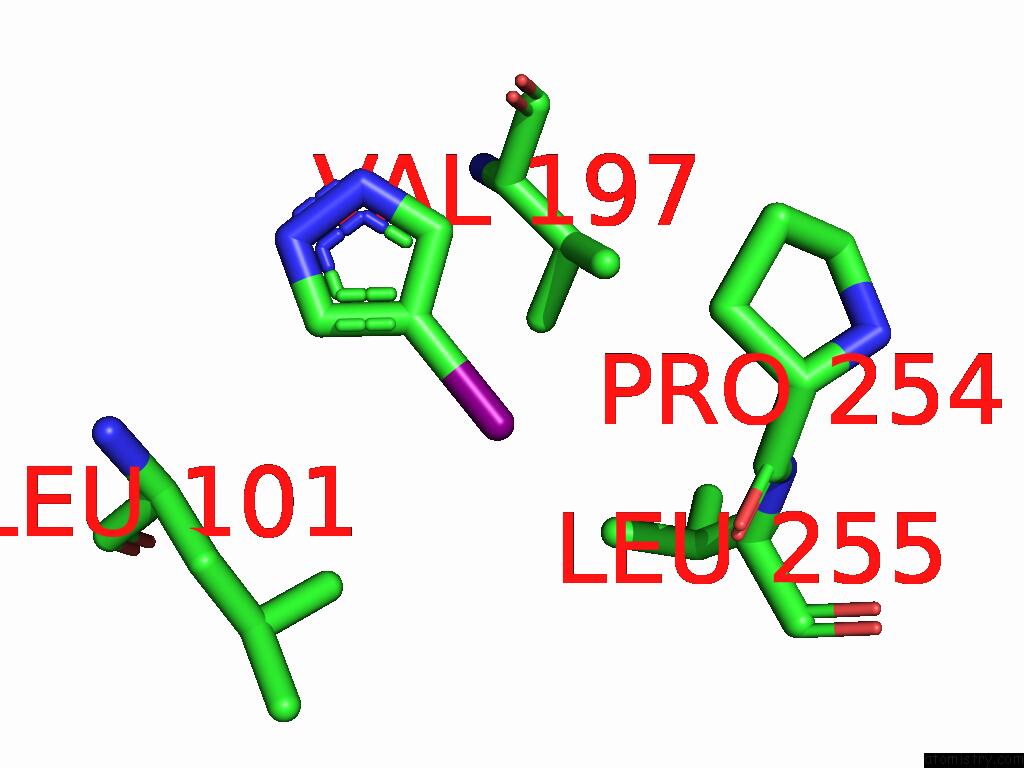

Iodine binding site 7 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 7 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 7 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:I606

b:89.5
occ:1.00
I4 A:PYZ606 0.0 89.5 1.0
C4 A:PYZ606 2.1 75.2 1.0
C3 A:PYZ606 3.1 78.0 1.0
C5 A:PYZ606 3.1 70.6 1.0
CB A:PRO254 3.9 40.3 1.0
O A:PRO254 4.0 43.4 1.0
C A:PRO254 4.2 41.9 1.0
N2 A:PYZ606 4.2 78.9 1.0
N1 A:PYZ606 4.2 76.9 1.0
CG1 A:VAL197 4.3 34.0 1.0
CD1 A:LEU101 4.5 30.9 1.0
N A:LEU255 4.6 40.1 1.0
CA A:PRO254 4.6 41.3 1.0
CD1 A:LEU255 4.8 37.0 1.0
CA A:LEU255 4.8 41.2 1.0

Iodine binding site 8 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 8 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 8 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
B:I501

b:91.3
occ:1.00
I4 B:PYZ501 0.0 91.3 1.0
C4 B:PYZ501 2.1 102.5 1.0
C3 B:PYZ501 3.1 99.1 1.0
C5 B:PYZ501 3.1 96.0 1.0
I4 B:PYZ502 3.6 103.6 1.0
CG B:TRP217 3.9 34.7 1.0
CB B:TRP217 4.0 33.9 1.0
CD2 B:TRP217 4.0 36.0 1.0
OE1 B:GLN254 4.0 37.9 1.0
CD B:GLN254 4.0 38.5 1.0
CE3 B:TRP217 4.2 34.6 1.0
CG B:GLN254 4.2 36.0 1.0
N2 B:PYZ501 4.2 93.9 1.0
N1 B:PYZ501 4.3 94.2 1.0
CD1 B:TRP217 4.5 35.9 1.0
CA B:LEU214 4.6 32.6 1.0
CE2 B:TRP217 4.6 37.2 1.0
NE2 B:GLN254 4.6 40.2 1.0
CG2 B:ILE213 4.7 39.5 1.0
CD1 B:LEU214 4.8 30.9 1.0
CB B:GLN254 4.8 36.4 1.0
NE1 B:TRP217 4.9 37.1 1.0
CZ3 B:TRP217 4.9 35.5 1.0
O B:ILE213 4.9 40.2 1.0
C4 B:PYZ502 4.9 77.7 1.0

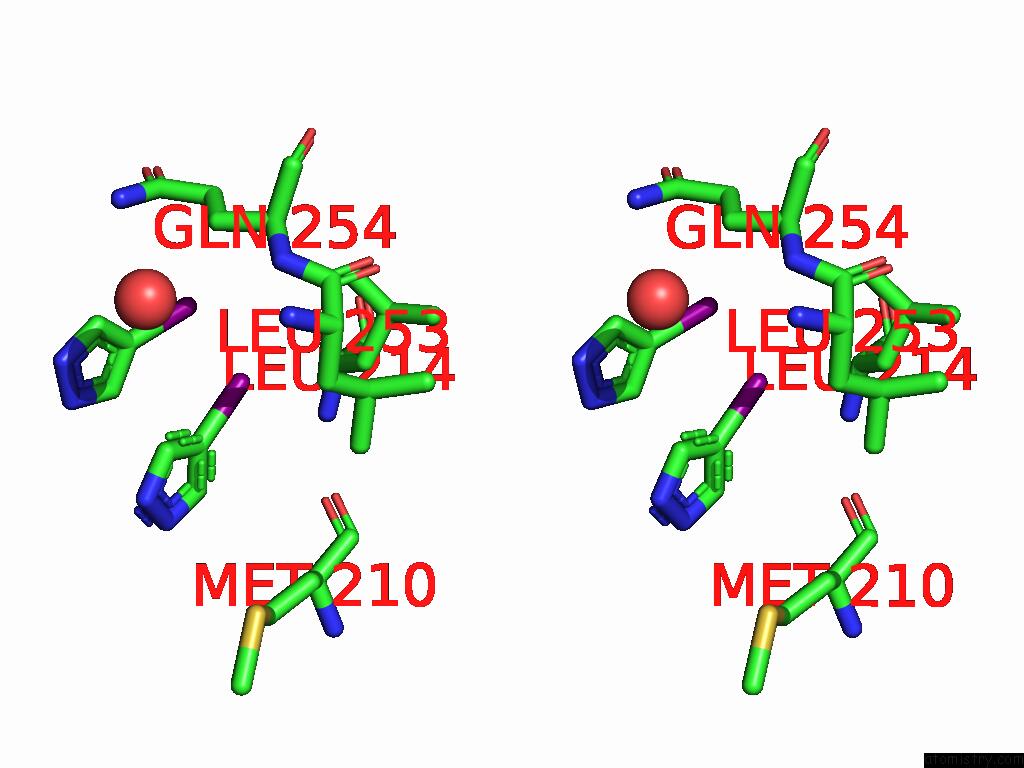

Iodine binding site 9 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 9 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 9 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
B:I502

b:103.6
occ:1.00
I4 B:PYZ502 0.0 103.6 1.0
C4 B:PYZ502 2.1 77.7 1.0
C3 B:PYZ502 3.1 71.0 1.0
C5 B:PYZ502 3.1 72.5 1.0
I4 B:PYZ501 3.6 91.3 1.0
C4 B:PYZ501 3.6 102.5 1.0
CB B:LEU214 3.9 31.6 1.0
C5 B:PYZ501 4.0 96.0 1.0
CD2 B:LEU253 4.1 33.2 1.0
N2 B:PYZ502 4.2 76.4 1.0
C3 B:PYZ501 4.2 99.1 1.0
CA B:LEU214 4.2 32.6 1.0
N1 B:PYZ502 4.2 72.9 1.0
CG B:LEU253 4.2 32.9 1.0
CD1 B:LEU214 4.3 30.9 1.0
O B:MET210 4.3 41.1 1.0
N B:LEU214 4.4 35.5 1.0
CB B:LEU253 4.4 34.9 1.0
O B:HOH645 4.6 42.6 1.0
CB B:GLN254 4.6 36.4 1.0
N B:GLN254 4.6 36.3 1.0
CG B:LEU214 4.7 30.2 1.0
N1 B:PYZ501 4.7 94.2 1.0
N2 B:PYZ501 4.8 93.9 1.0
CA B:GLN254 4.8 35.5 1.0
C B:LEU253 4.9 35.6 1.0
CG B:GLN254 5.0 36.0 1.0

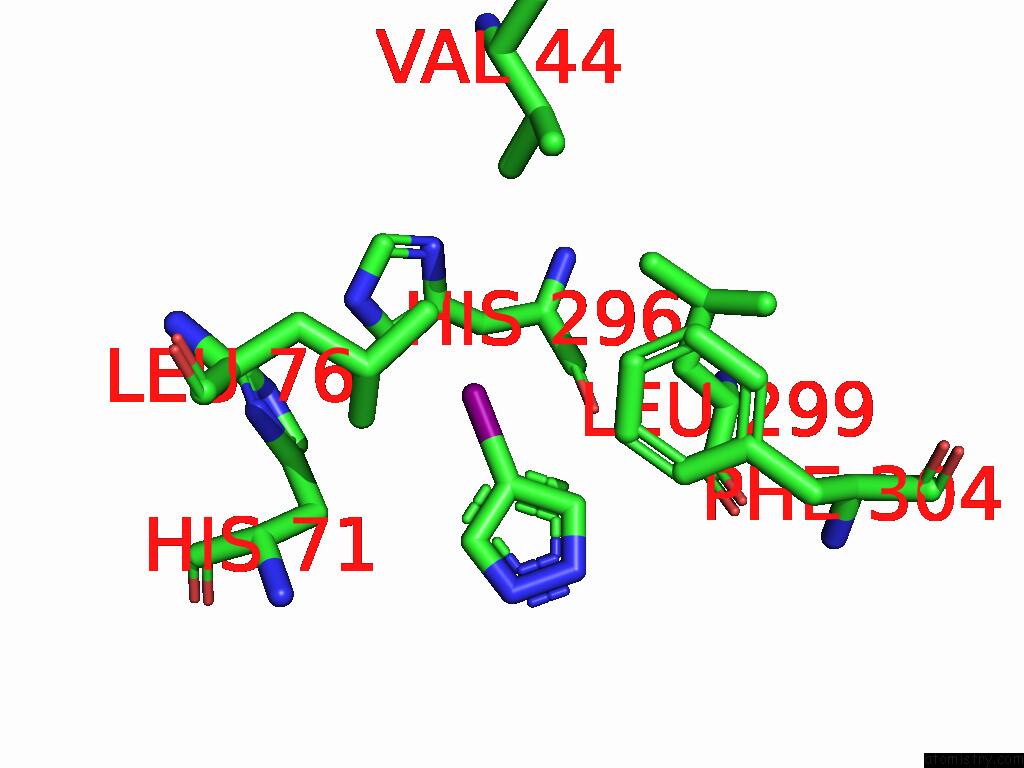

Iodine binding site 10 out of 16 in 9etb

Go back to Iodine Binding Sites List in 9etb
Iodine binding site 10 out of 16 in the CDK2-Cyclin A in Complex with Fraglite 2


Mono view


Stereo pair view

A full contact list of Iodine with other atoms in the I binding site number 10 of CDK2-Cyclin A in Complex with Fraglite 2 within 5.0Å range:
probe atom residue distance (Å) B Occ
B:I503

b:143.5
occ:1.00
I4 B:PYZ503 0.0 143.5 1.0
C4 B:PYZ503 2.1 108.1 1.0
C5 B:PYZ503 3.1 96.7 1.0
C3 B:PYZ503 3.2 93.1 1.0
CD2 B:HIS296 3.5 71.6 1.0
CG B:HIS296 3.8 63.3 1.0
NE2 B:HIS296 3.8 80.1 1.0
CD1 A:LEU76 3.9 47.1 1.0
CG A:HIS71 4.1 90.4 1.0
CB A:HIS71 4.2 76.2 1.0
ND1 B:HIS296 4.2 66.7 1.0
CE1 B:HIS296 4.2 74.7 1.0
N1 B:PYZ503 4.3 93.3 1.0
N2 B:PYZ503 4.3 84.4 1.0
O B:HIS296 4.3 44.0 1.0
CA B:HIS296 4.3 46.7 1.0
CB B:HIS296 4.3 54.2 1.0
CD2 A:HIS71 4.4 92.2 1.0
CE2 B:PHE304 4.5 39.2 1.0
ND1 A:HIS71 4.6 96.3 1.0
CB B:LEU299 4.6 32.9 1.0
CD1 B:LEU299 4.7 32.1 1.0
CD2 A:LEU76 4.7 43.7 1.0
C B:HIS296 4.7 45.4 1.0
CZ B:PHE304 4.8 38.6 1.0
CG A:LEU76 4.9 45.9 1.0
CG2 A:VAL44 4.9 41.4 1.0

Reference:

I.Hope, M.P.Martin, M.J.Waring, M.E.M.Noble, J.A.Endicott, N.J.Tatum. Crystallographic Fragment Screening of CDK2-Cyclin A: Fraglites Map Sites of Protein-Protein Interaction To Be Published.
